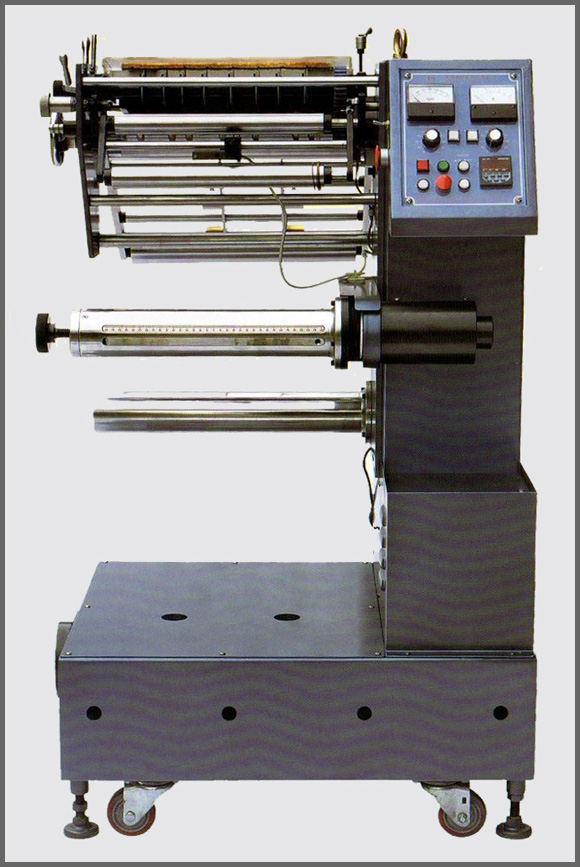

SL-320 High Speed Label Slitting Machine
Specification
| Max. Web Breadth | 320 mm |
| Min. Slitting Width | 10 mm |
| Max. Diameter of Reel Stock | 500 mm |
| Inner Pipe Diameter | 25.4/38/76 |
| Motor Single Phase | 1HP, 1/2HP |
| Slitting Speed | 90 m/min. |
| Machine Size | 100(L)*130(H)*90(W) cm |
| Machine Net Weight, Gross Weight | 300 380 kgs |
| Measurement | 52 |
Standard Function
．Tension control clutch, vacuum plate web control, vacuum waste edge remover, adjustable counter for speed, meter & piece.Applicable Materials
．Adhesive label stocks of paper PVC polyster, OPP, laser paper price marking, labels. Aluminum foils & available of other special. Materials for precise slitting.280 Cutting Machine  H：840 mm， W：320 mm |
280 Feeding Machine  H：800 mm， W：320 mm |
Roller
 H：1500 mm， W：340 mm |
Roller  H度：720 mm， W：500 mm |
Roller
 H：750 mm， W：340 mm |
|
